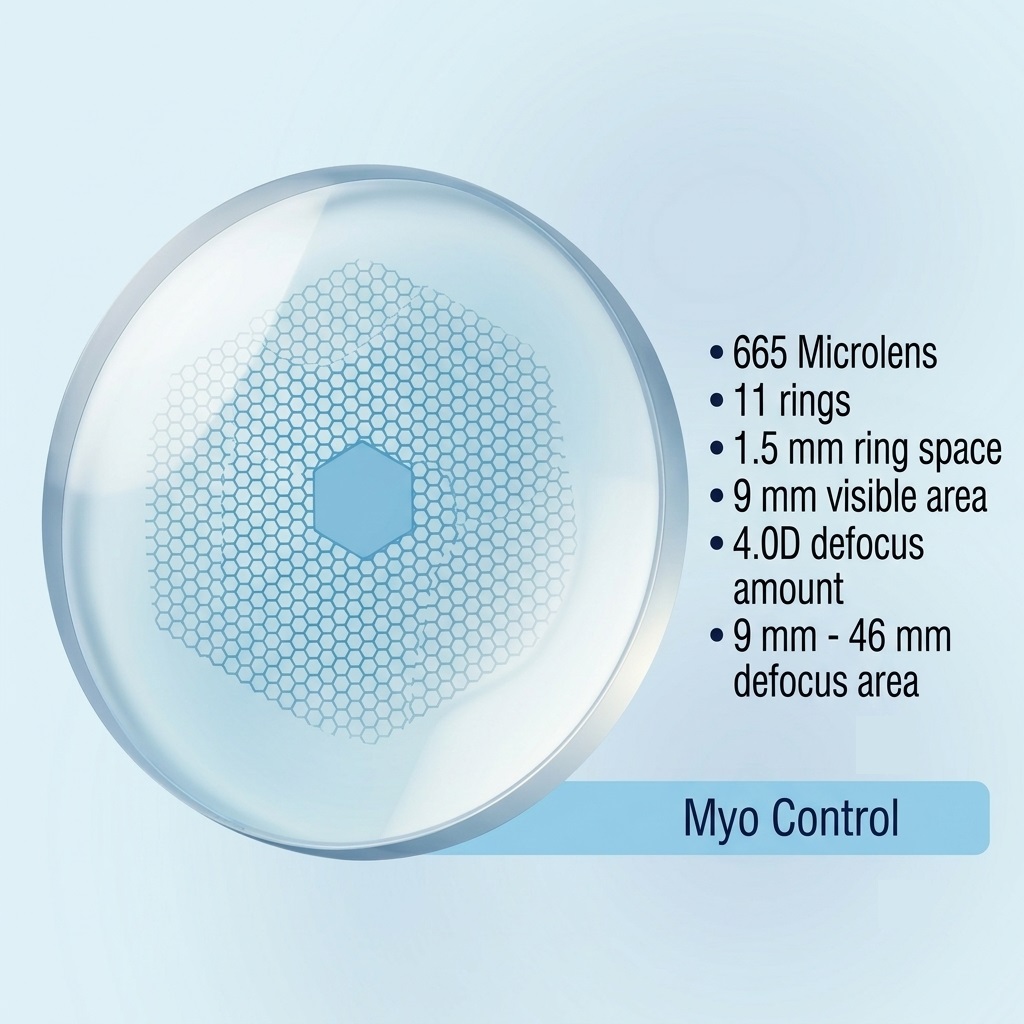

A. Central Visual Correction Zone

The clear circle at the exact center of the lens (indicated by the 9 mm visible area), this zone contains the child’s actual distance prescription. It focuses light sharply and directly onto the central part of the retina (the fovea), ensuring that the child enjoys crisp, clear, and high-contrast vision for daily activities like reading or looking at the classroom board.

B. Peripheral Treatment / Defocus Zone

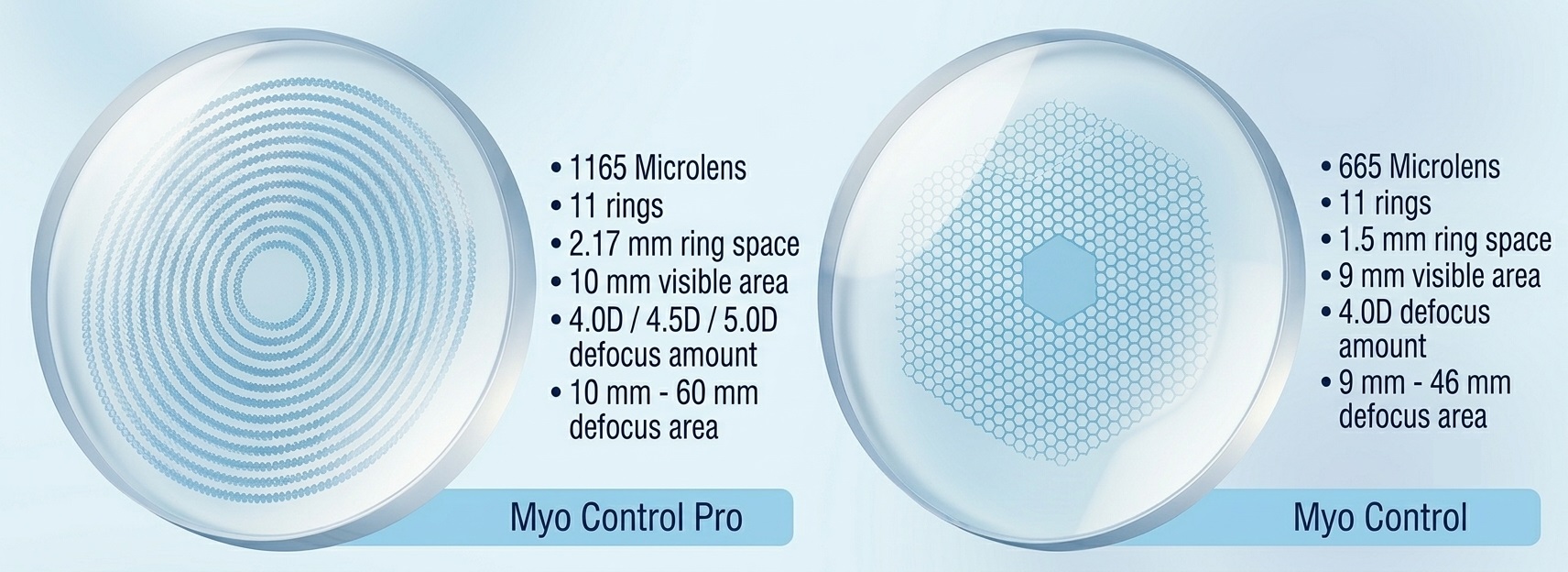

The surrounding outer area extending from a diameter of 9 mm up to 46 mm (9 mm – 46 mm defocus area), It consists of 665 micro-sized lenses (Microlenses) arranged geometrically into 11 concentric rings with a constant spacing of 1.5 mm (1.5 mm ring space) between them.

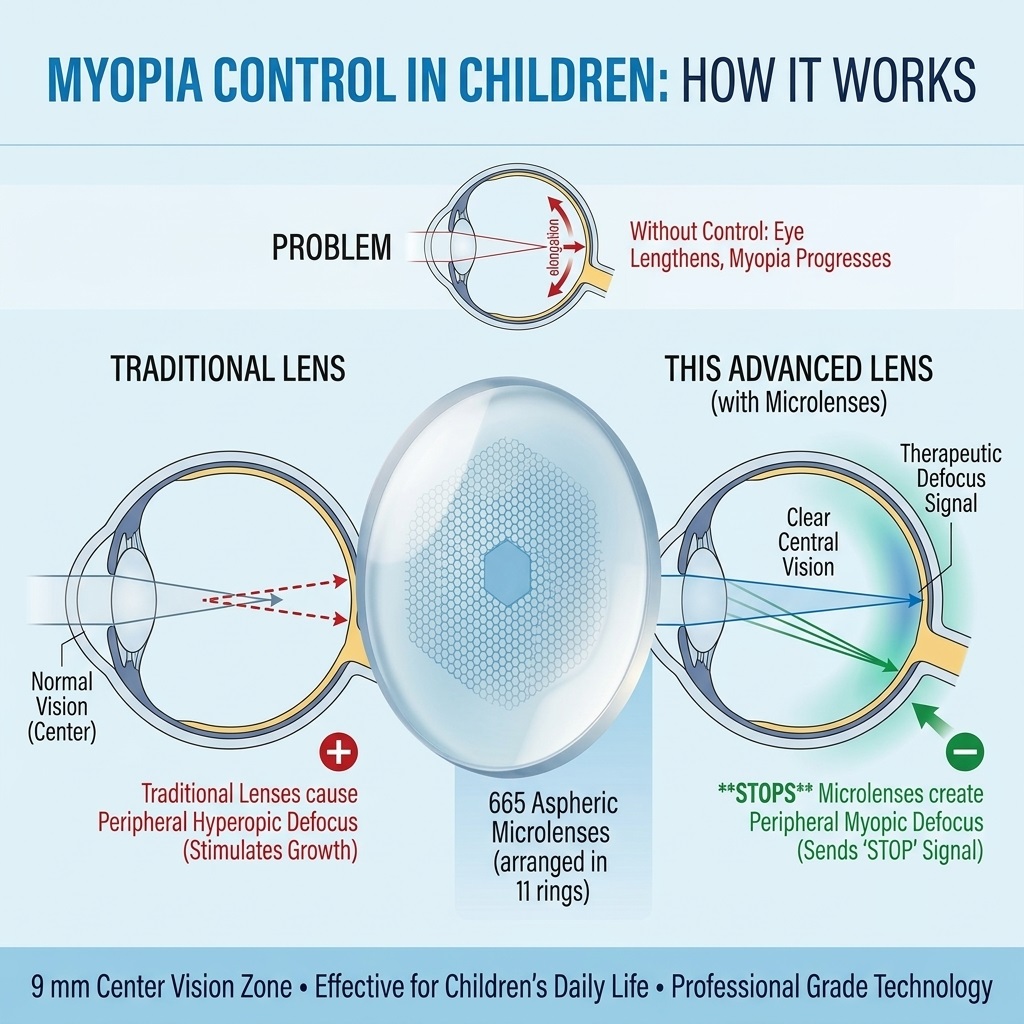

The Physics of Myopic Defocus: When the child looks through the periphery of the lens, these microlenses deliberately project peripheral light rays in front of the peripheral retina rather than behind it. This creates a powerful therapeutic defocus effect of +4.00 diopters (4.0D defocus amount).

Stopping Eye Growth: Standard, single-vision glasses focus peripheral light behind the retina, which sends a biological signal to the brain that the eye is “too short,” triggering it to elongate (worsening myopia). By shifting that peripheral light in front of the retina, this design sends a “stop growing” biological signal to the eye, effectively slowing down axial elongation (the physical lengthening of the eyeball) by 50% to 70%.
